Supply voltage:
110-240VAC / 50-60Hz
Power consumption:
approx. 0,2W
Material Enclosure:
Polycarbonate, UV-resistant
Temperature range:
-25°C....+50°C
Ingress protection:
IP20
Protection category:
II
Area of coverage:
circular 360°

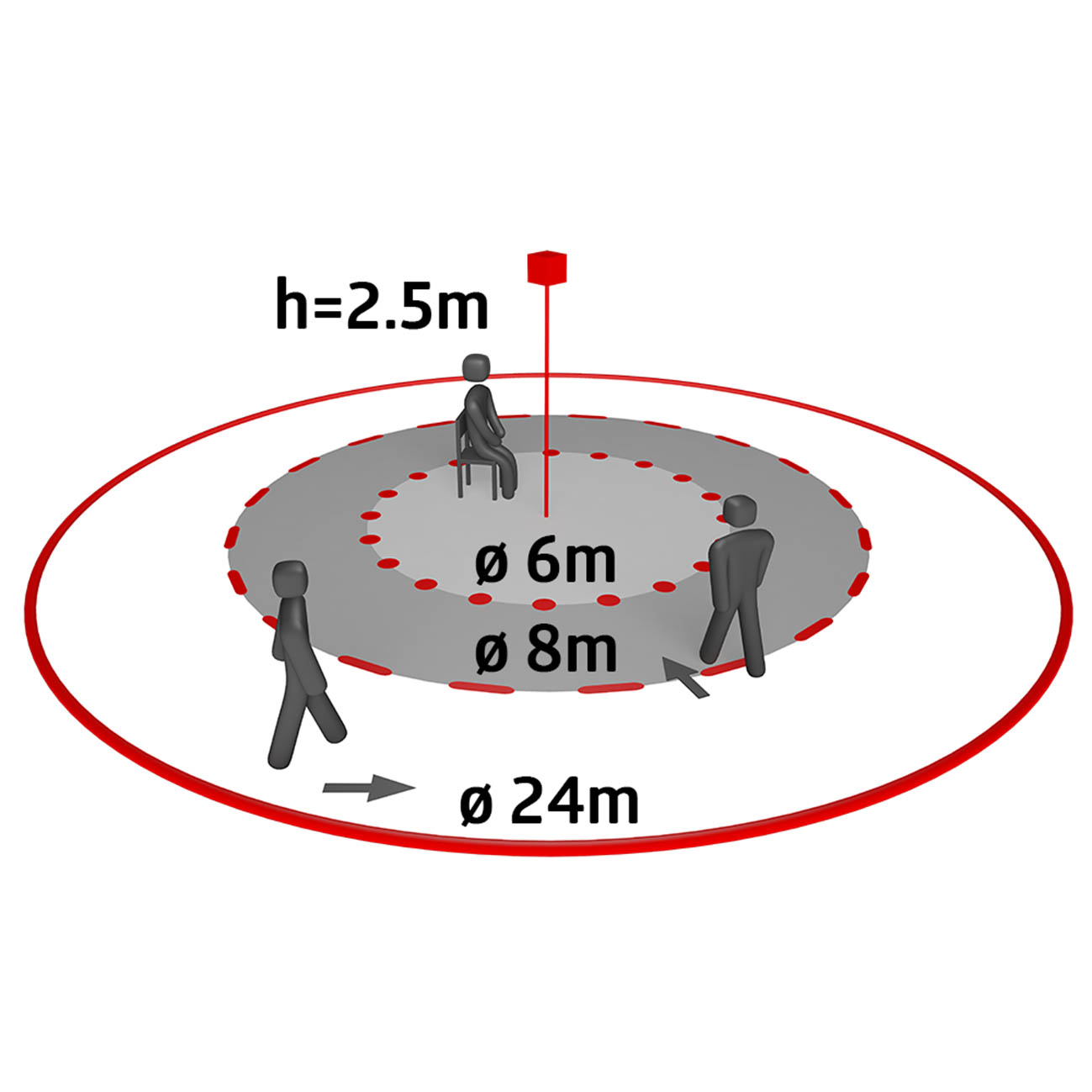

Range of coverage:
Ø H 2.50m / T = 18°C:
seated 6.40m
tangential 24m
radial 8m
seated 6.40m
tangential 24m
radial 8m
Mounting height min./max./recommended:
2 m / 10 m / 2.5 m
Recommended height for mounting:
2,5m

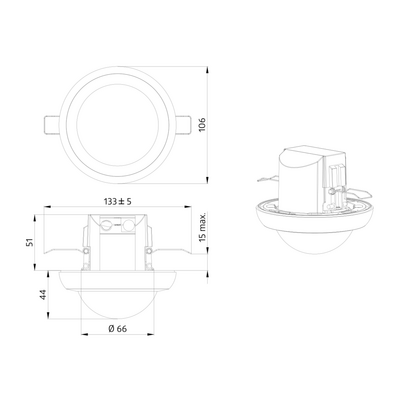

Measurements

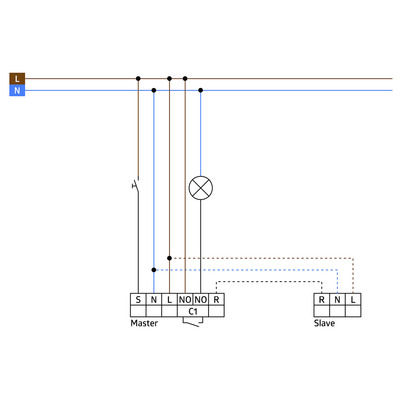

Wiringdiagrams
