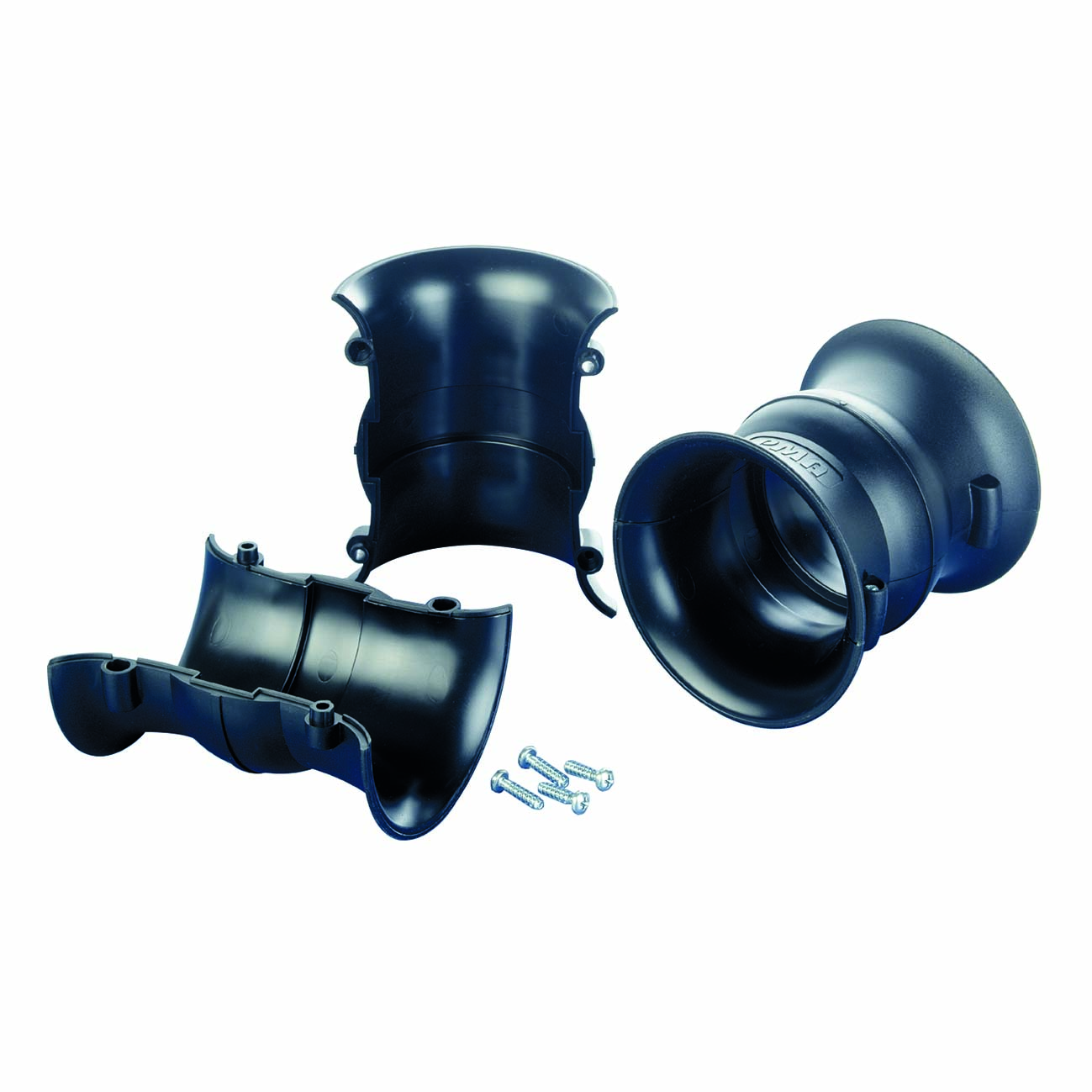

BTK - Ball joint sleeve
- Ball joint sleeve allows fixation and mechanical guidance of PMA conduits
- Used in combination with BSH tube clamps
- Suited for robotics dress pack installations
- Ball joint used in combination with BSH allows tilting of up to +/- 10° and 360° of axial rotation, increases degree of freedom for cable packs
- Trumpet-shaped openings restricts conduit bending radius, increasing product lifetime
- Combination with strain relief insert (BTR) allows to block axial conduit movement/sliding (rotation of the conduit remains possible)
- Easy to install and exchange
- High-grade, specially formulated polyamide 6
- Free from halogens and cadmium
Compatible with:
- PMA Automation BSH Tube clamp
- PMAFLEX Pro Conduits
- PMAFLEX Multilayer Conduits
- PMAFLEX Conduits
Material:
Polyamide PA6
Temperature range:
-50°C....+105°C
Colour:
Black RAL 9005
Halogen-Free:
Yes
