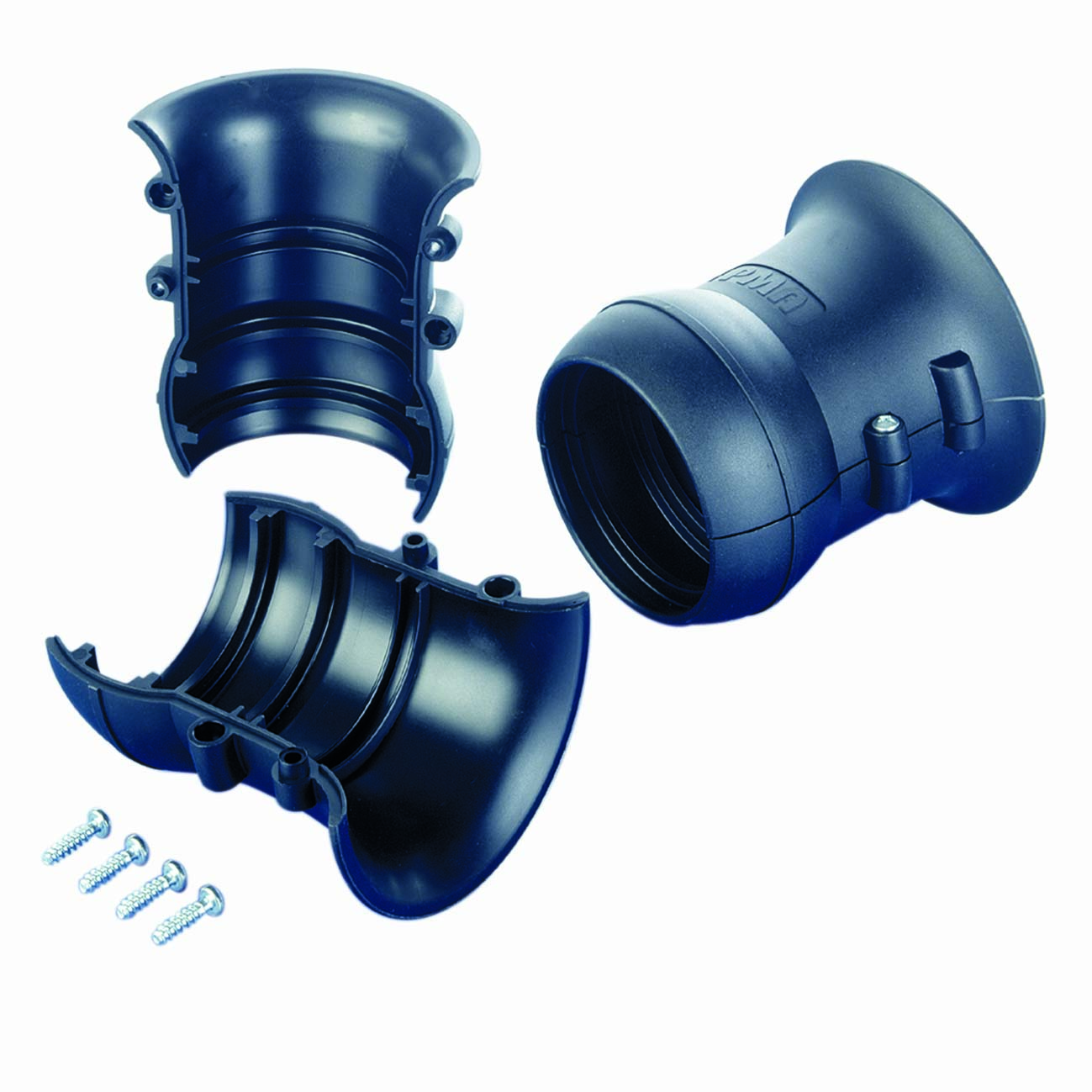

BKE - Ball joint termination

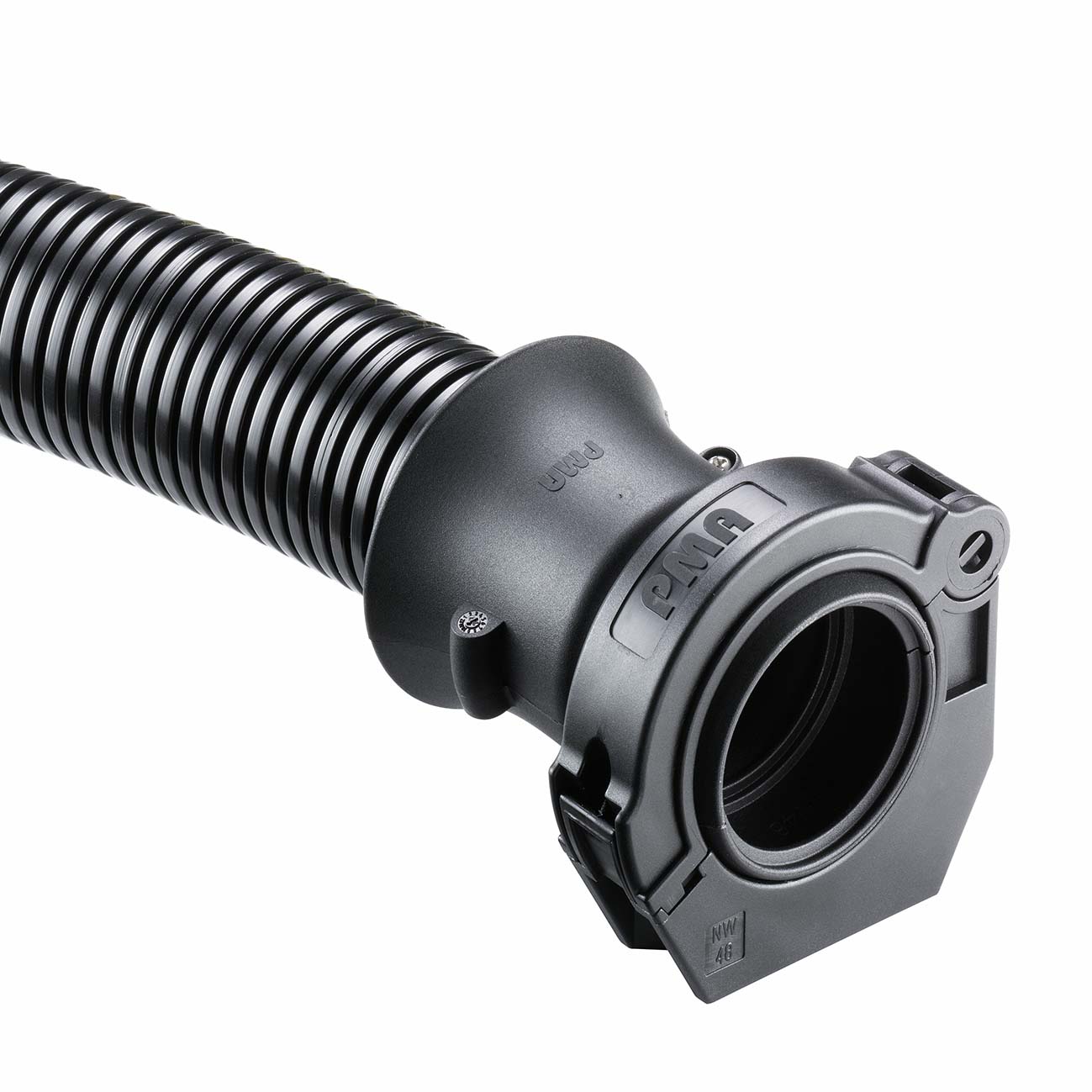

- Ball joint termination allows fixation of a PMA conduit terminal
- Used in combination with BSH tube clamps
- Suited for robotics dress pack installations, e.g. end piece of conduit at axis 6
- Ball joint used in combination with BSH allows tilting of up to +/- 10° and 360° of axial rotation
- Trumpet-shaped opening restricts conduit bending radius, reduces mechanical stress and increases product lifetime
- Easy to install and exchange
- Additional strain relief possible in combination with the BKS cable star
- High-grade, specially formulated polyamide 6
- Free from halogens and cadmium
Compatible with:
- PMA Automation BSH Tube clamp
- PMAFLEX Pro Conduits
- PMAFLEX Multilayer Conduits
- PMAFLEX Conduits
Material:
Polyamide PA6
Temperature range:
-50°C....+105°C
Colour:
Black RAL 9005
Halogen-Free:
Yes
