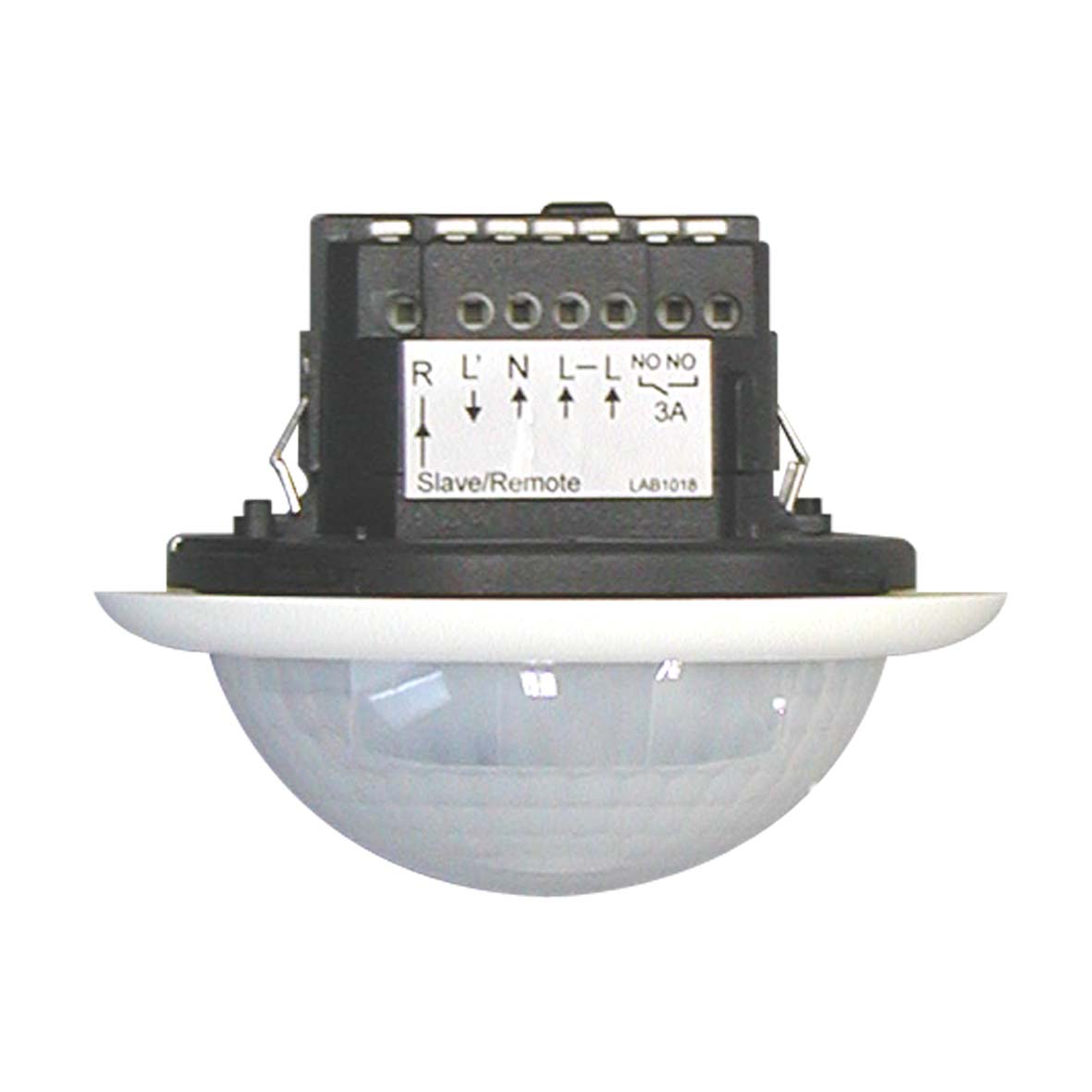

PD4-M-2C-K
Supply voltage:
110-240VAC / 50-60Hz
Power consumption:
< 1W
Material Enclosure:
Polycarbonate, UV-resistant
Temperature range:
-25°C....+50°C
Protection category:
II
Settings:
Potentiometers, DIP switches and remote control
Extension of the detection area:
with slave detector
Area of coverage:
circular 360°
Range of coverage:
Ø H 2.50m / T = 18°C:
tangential 40m
radial 20m
tangential 40m
radial 20m
Recommended height for mounting:
2,5m
Light measurement:
Mixed light, daylight + artificial light
Channel 1:
PD2-M-2C
Channel 2:
HVAC control potential-free (dry) 1x µ-contact, dry NO contact Switching power: 3 A (230 V), cos φ = 1 Follow-up time: 5 min - 120min Alarm pulse, Pulse
Dimensions:
H x Ø mm: UTP 76 x 101, TAK 103 x 97, INF 70 x 104
Visible portion when built into ceiling:
H x Ø mm: TAK 30 x 97, INF 40 x 104
Push button:
1 push button
Halogen-Free:
Yes
