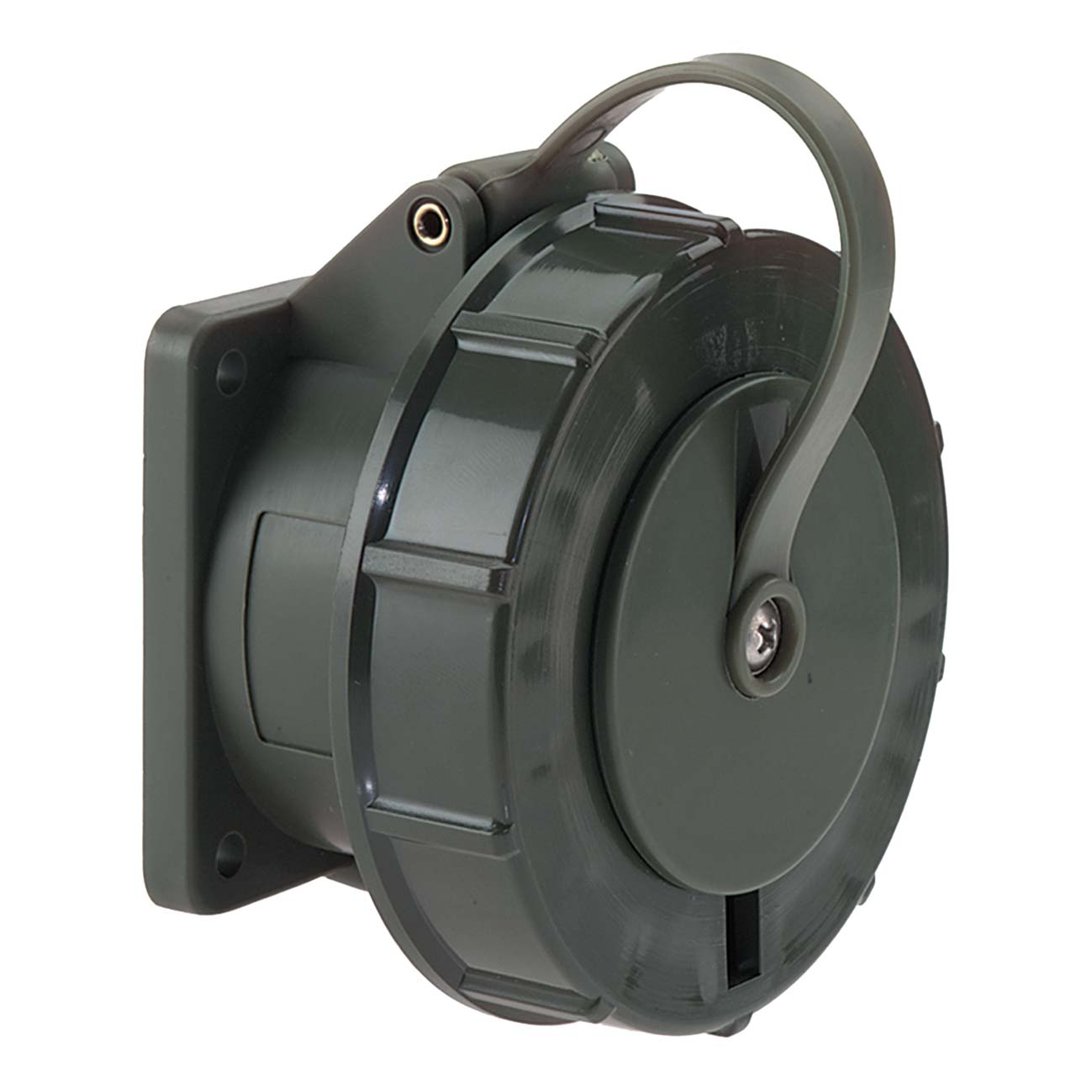

Panel Mounting Socket Outlet Straight with Screw Terminals IP67
63A / 125A
- Panel Mounting Appliance Outlet with screw terminals
- IP67/IP69
- With pilot contact
- Flange:
63A: 107x100mm
125A: 120x120mm
Material Enclosure:
Polyamide
Material Terminals:
Brass nickel plated
Connection capacity:
63A max. 25mm²125A max. 70mm²
Ingress protection:
IP67 / IP69
Standards:
IEC 60309, EN 60309, VDE 0623, VG 96926 *according to VG 96919
Colour:
RAL 6031-F9 - Bronze-green
