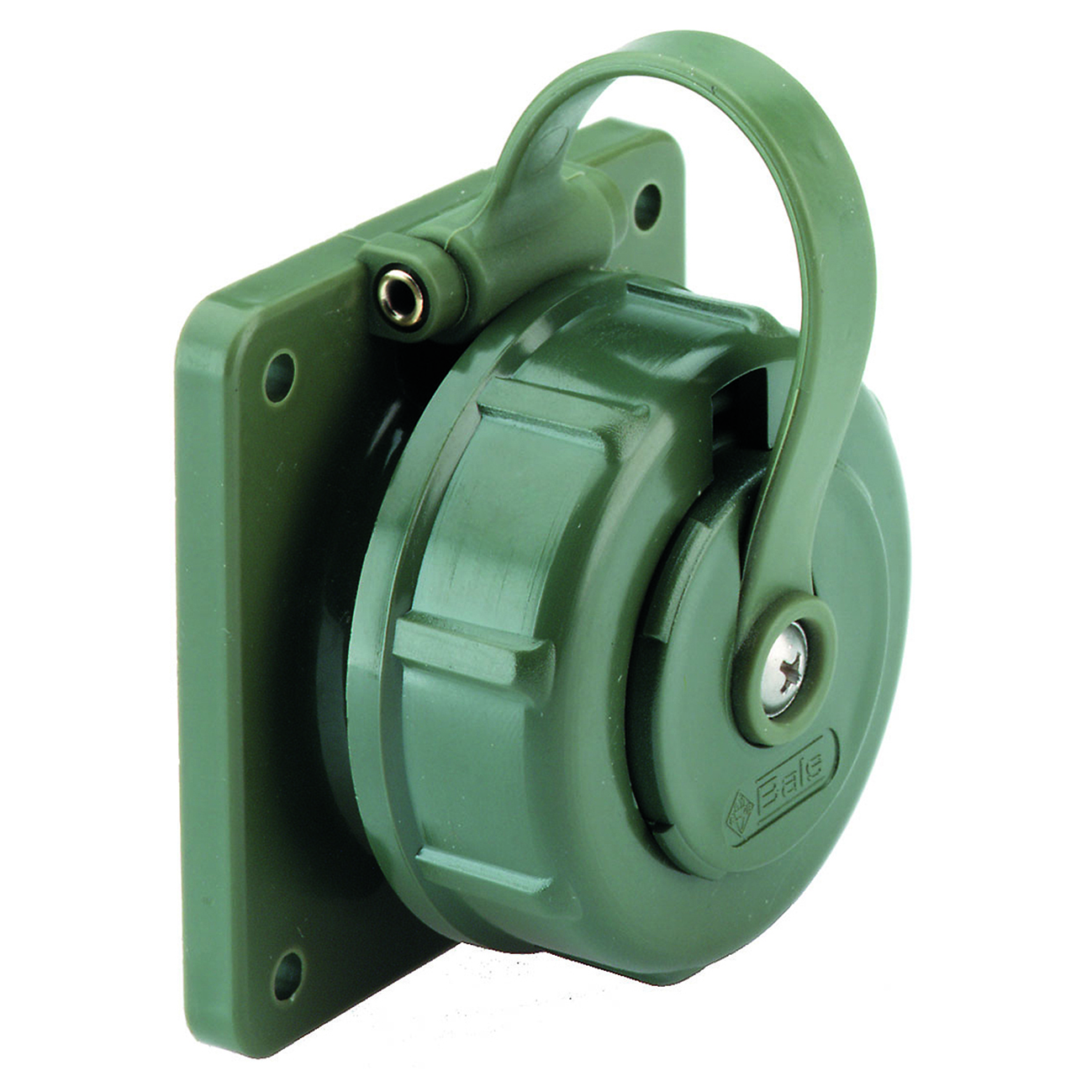

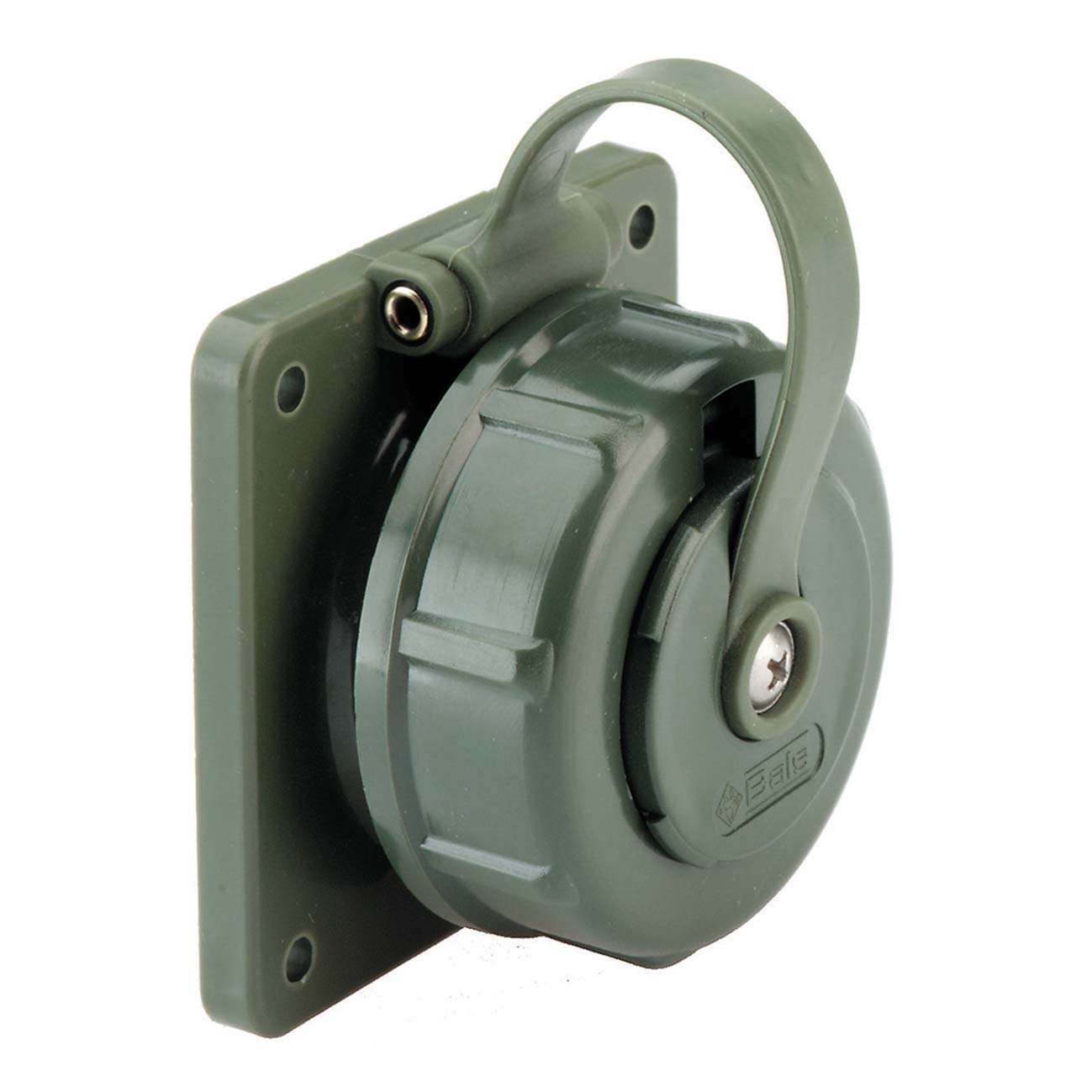

Domestic Panel Mounting Socket Outlet Schuko IP68

  • Domestic Panel Mounting Socket Outlet with Screw Terminals, Schuko
  • VG-type-no.: VG 96926 AS 001

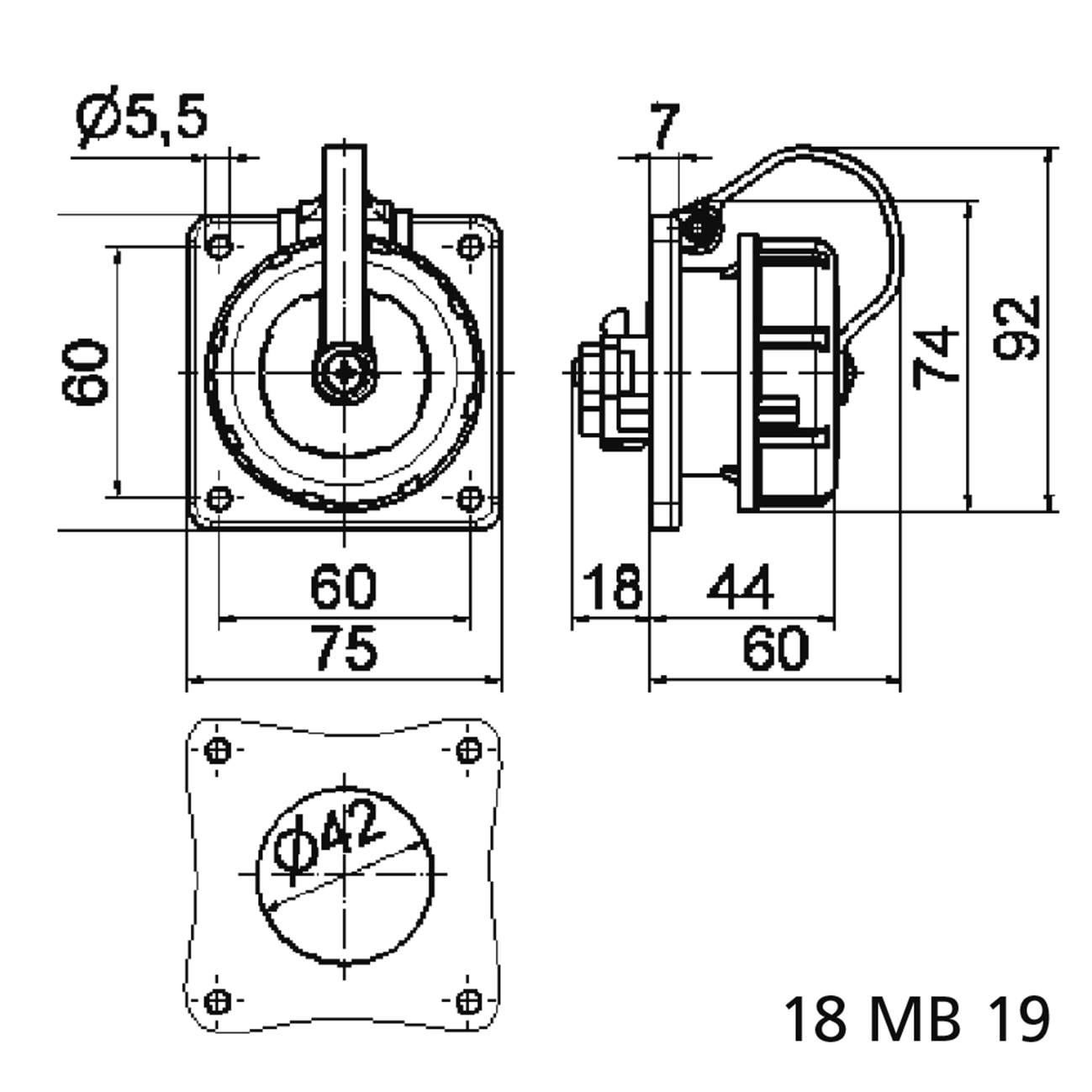

  • Flange: 75x75mm

Create product sheet (PDF)
Questions/Order
Material Terminals:
Brass nickel plated
Connection capacity:
16A max. 4mm²
Ingress protection:
IP68
Standards:
IEC 60309, EN 60309, VDE 0623, VG 96926
*according to VG 96919
Colour:
RAL 6031-F9 - Bronze-green
