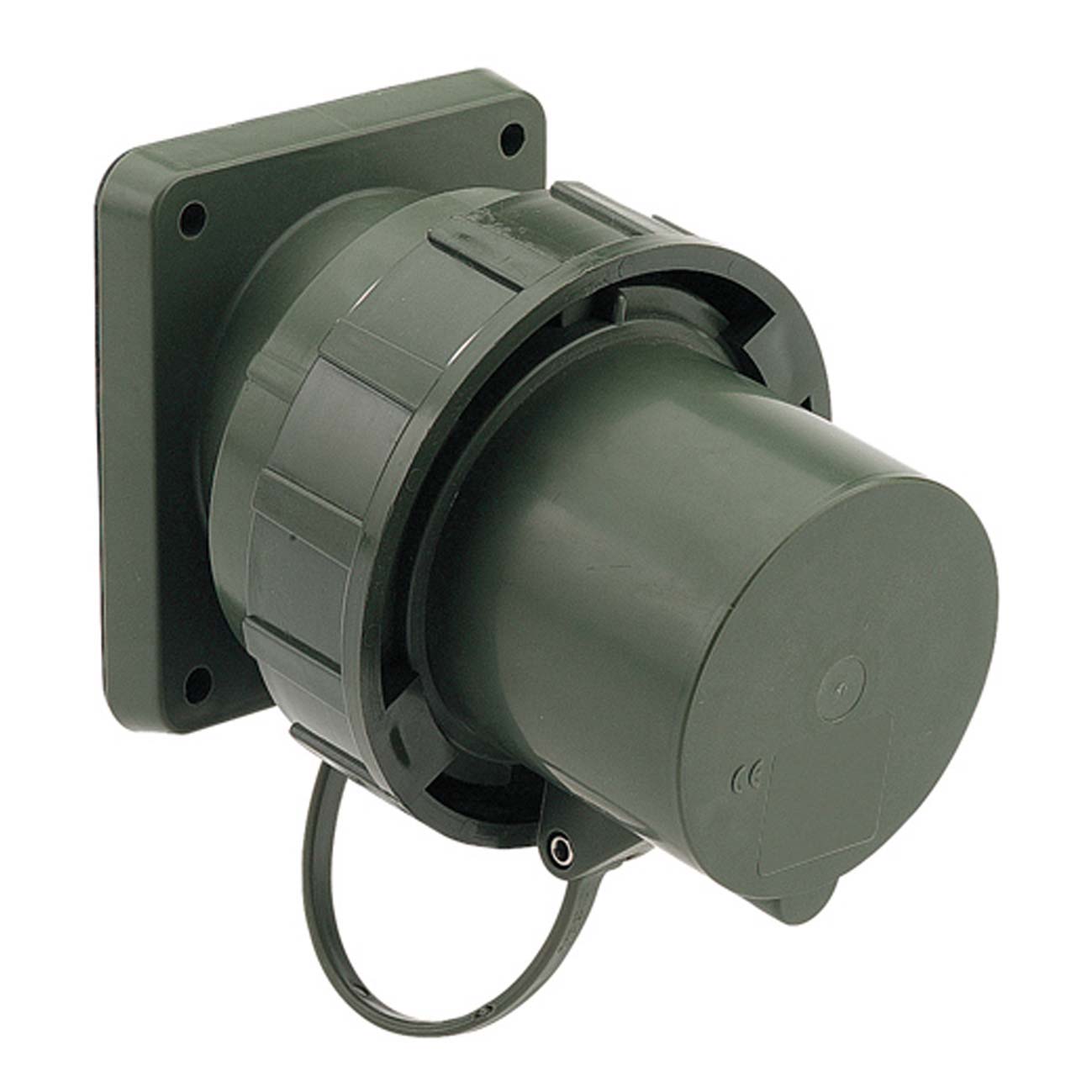

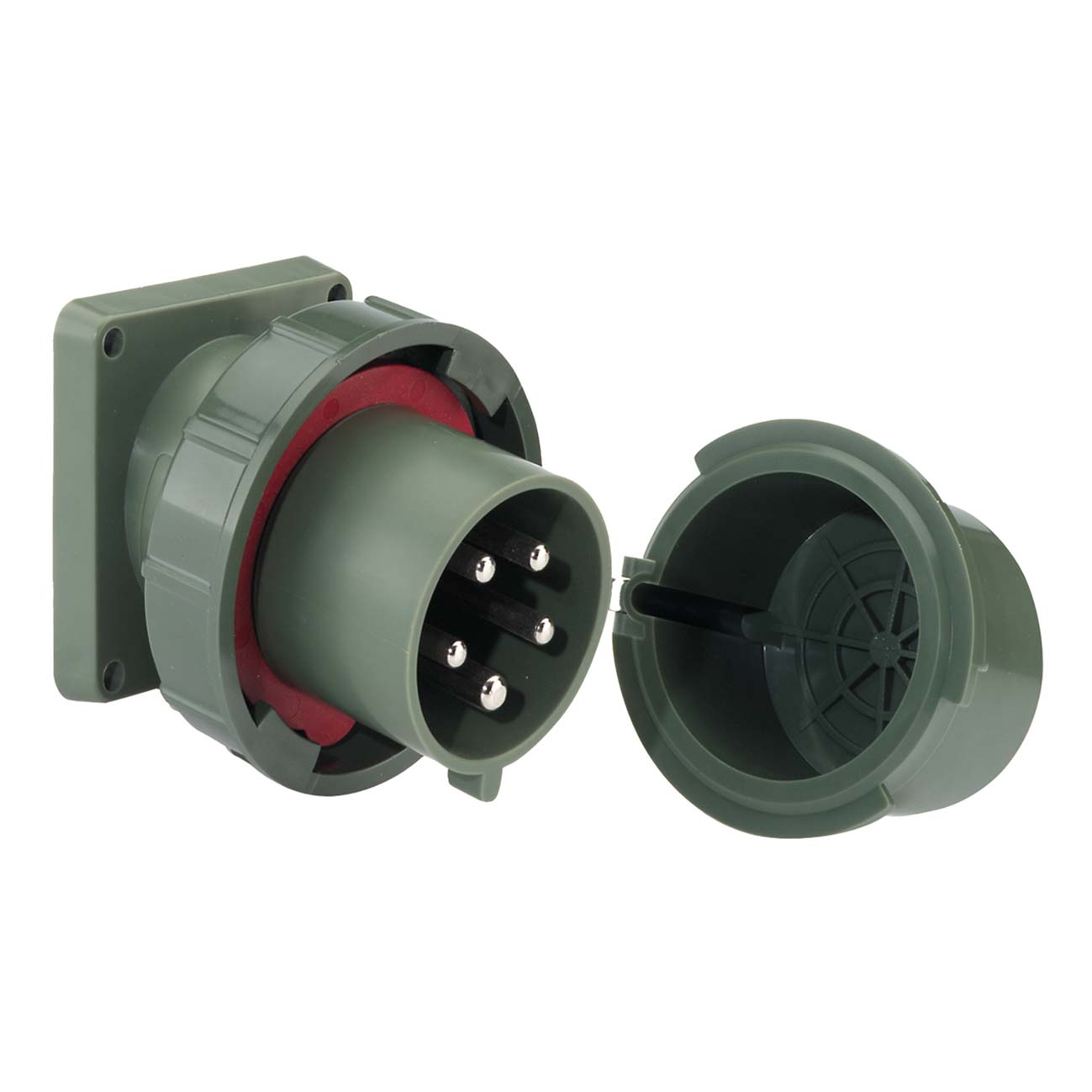

Angled Appliance Inlet with Flange and Screw Terminals
16A / 32A / 63A / 125A
- Appliance Inlet with screw terminals
- Angled 10°
- IP67/IP69
- With protective cap
- Flange:
16A & 32A: 85x85mm
63A: 107x100mm
125A: 130x120mm
Material Enclosure:
Polyamide
Material Terminals:
Brass nickel plated
Connection capacity:
16A max 2,5mm²32A max 6mm²63A max 16mm²125A max 50mm²
Ingress protection:
IP67 / IP69
Standards:
IEC 60309, EN 60309, VDE 0623, VG 96926 *according to VG 96919
Colour:
RAL 6031-F9 - Bronze-green
