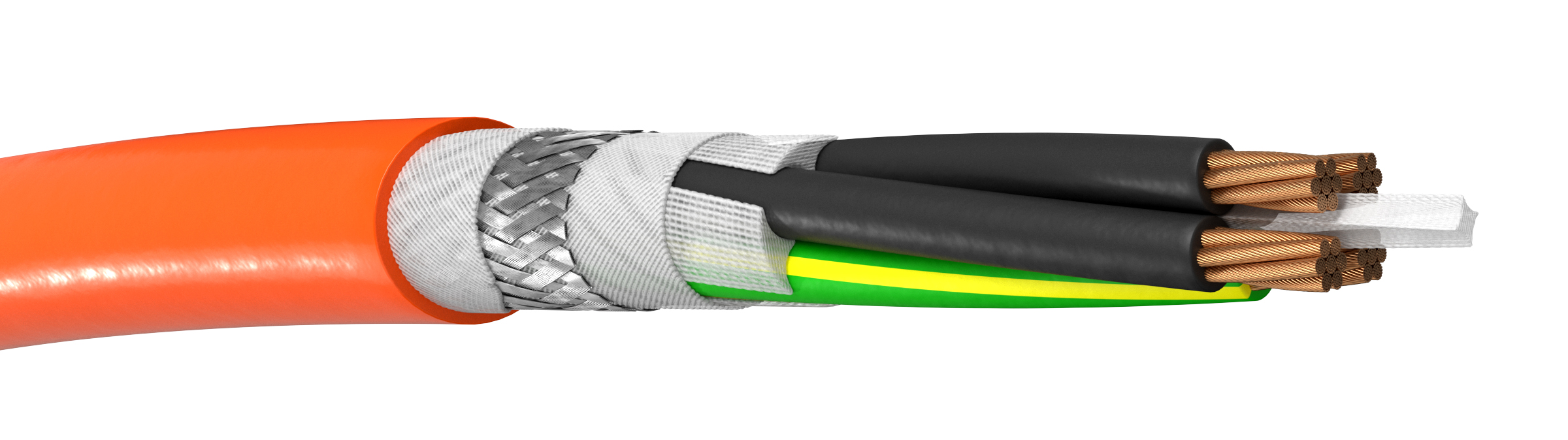

Servo FRX-ST
Shielded (EMC) motor cable for drag chains 0,6/1 kV
Rated Voltage Uo/U:
0,6/1kV
Rated Voltage acc to. UL/CSA:
1000V
Conductor class:
Class 6 = extra fine stranded wires
Conductor material:
Copper
Core insulation:
Polypropylene (PP)
Core identification:
Black with white printing ( U/L1/C/L+, V/L2, W/L3/D/L-) + Gr/yel; Signal-pair: White-black
Protective conductor:
Yellow/Green
Shield control pairs:
Tinned copperwire
Overall shield:
Braided tinned copper wire
Shield coverage:
Approx. 85%
Outer sheath:
PVC
Sheat colour:
Orange RAL 2003
Bending radius fixed:
4 x cable diameter ≤ 16mm², 5 x cable diameter at ≥25mm²
Bending radius moved:
7,5 x cable diameter at ≤16mm², 10 x cable diameter at ≥25mm²
Min operating temperature fixed:
-40°C
Max operating temperature fixed:
+90°C
Min operating temperature moved:
-5°C
Max operating temperature moved:
+90°C
Testing voltage:
4000V
Oil resistance:
EN 50363-10-2, UL 1581
Flame retardant:
IEC 60332-1, UL1581 VW1, CSA FT1
