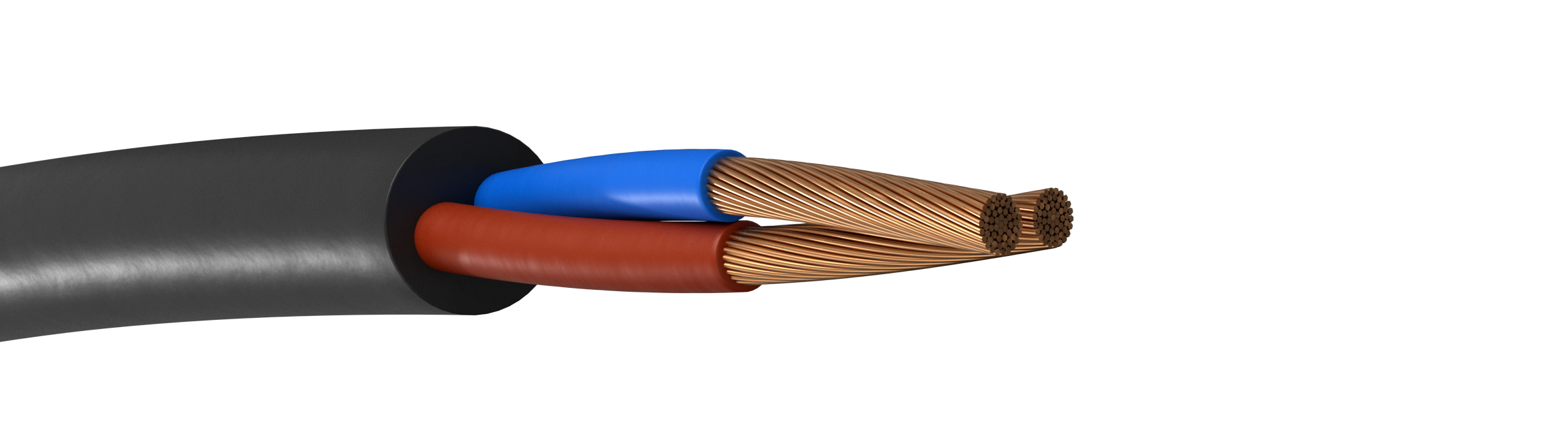

H07RN-F
Rubber sheathed cable
Standard:
Cenelec HD 22.4 S3, VDE 0295
Approvals:
Cenelec HAR
Rated Voltage Uo/U:
450/750V
Conductor class:
Class 5 = fine stranded wires
Conductor material:
Copper
Core insulation:
Rubber
Core identification:
2 cores Brown+Blue
3 cores Brown+Blue+Green/Yellow
4 cores Brown+Black+Grey+Green/Yellow
5 cores Brown+Black+Grey+Blue+Green/Yellow
≥7 cores Black with numerals
3 cores Brown+Blue+Green/Yellow
4 cores Brown+Black+Grey+Green/Yellow
5 cores Brown+Black+Grey+Blue+Green/Yellow
≥7 cores Black with numerals
Protective conductor:
Yellow/Green
Outer sheath:
Special rubber
Sheat colour:
Black
Bending radius fixed:
4 x cable diameter
Bending radius moved:
6 x cable diameter
Min operating temperature fixed:
-25°C
Max operating temperature fixed:
+60°C
Min operating temperature moved:
-25°C
Max operating temperature moved:
+60°C
Testing voltage:
2500V
Insulation resistance:
≥1 MOhm x km
Flame retardant:
IEC 60332-1
