CABseal - Splittable cable entry

CABseal – always the more sophisticated solution

  • Unlimited modularity

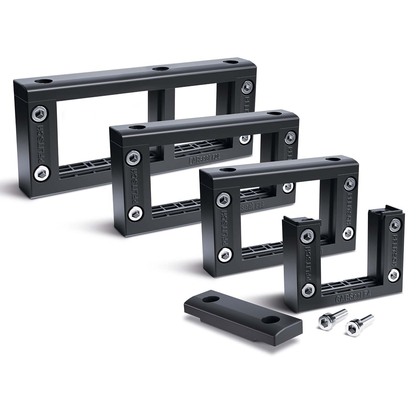

    Splittable cable entry system with flexibly equipped frames, where all frames and all grommets are compatible. For quick assembly and easy storage.
  • Fully tolerant

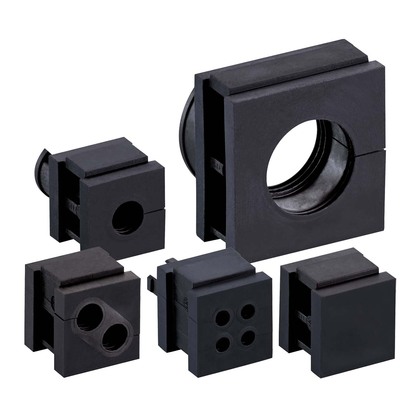

    The grommets have a flexible sealing lip geometry and are designed for cables from 3 mm to 16 mm (small GS grommets) or from 16 mm to 33 mm (large GL grommets), with a sealing range of up to 1.6 mm.
  • Consistently flexible

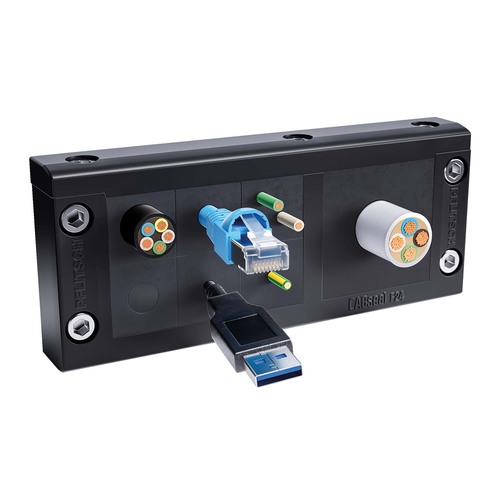

    The CABseal frame can be equipped with a variety of cables of different diameters. For up to 40 cables per frame.
  • Always IP 66 and UL Type 4X (indoors)
    No more wondering whether the cable entry fulfils the necessary protection rating every time you start a new project. CABseal always provides IP 66 protection, unlike systems with product-dependent protection ratings.

  • All grommets with separate strain relief
    CABseal grommets with a strain relief flap enable separate strain relief with cable ties.
  • Never any ‘losable’ small parts
    CABseal frames have an integrated moulded seal. No additional flat gasket is required.
  • Simple assembly throughout

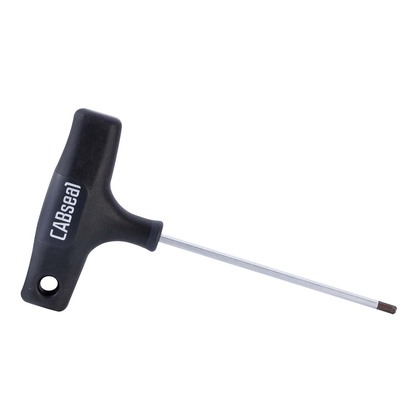

    CABseal is a modular system that’s always easy to assemble – the same procedure every time. No “either or” but always identical. All you need is an Allen key.
