Cable Gland Polyamide M25 with slotted sealing ring

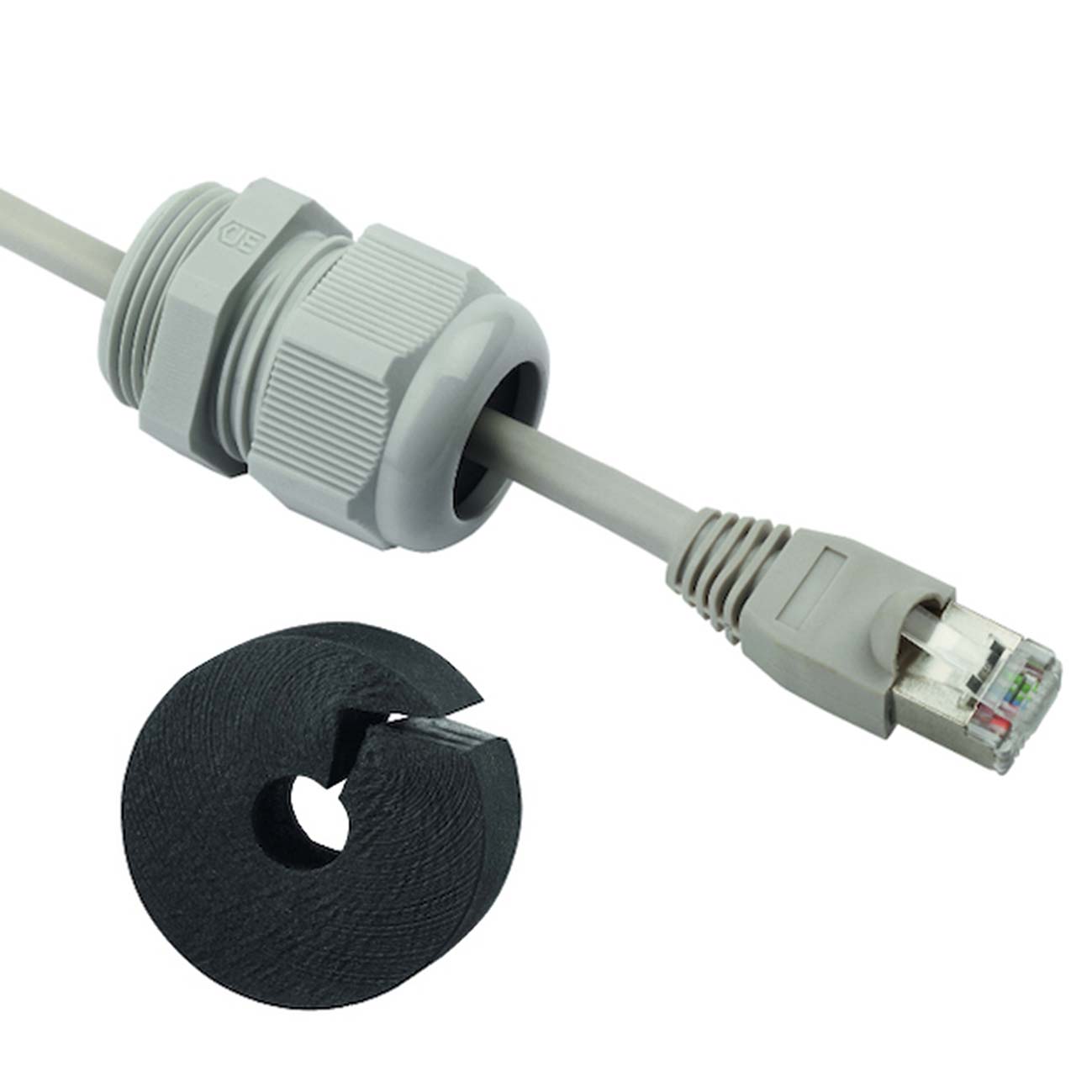

  • the slotted sealing ring enables cables and leads with fixed connectors (e.g. RJ-45, USB, etc.) to be installed simply and securely
  • suitable for circular connectors with diameter up to 17mm and connectors with rectangular cross-section and diagonal up to 16,5mm
Create product sheet (PDF)
Questions/Order
Material:
Polyamide PA6 V-2
Sealing ring:
NBR/SBR
Ingress protection:
IP65
Temperature range:
-20°C....+70°C (dynamisk)
-40°C (static, short term)
Halogen-Free:
Yes
