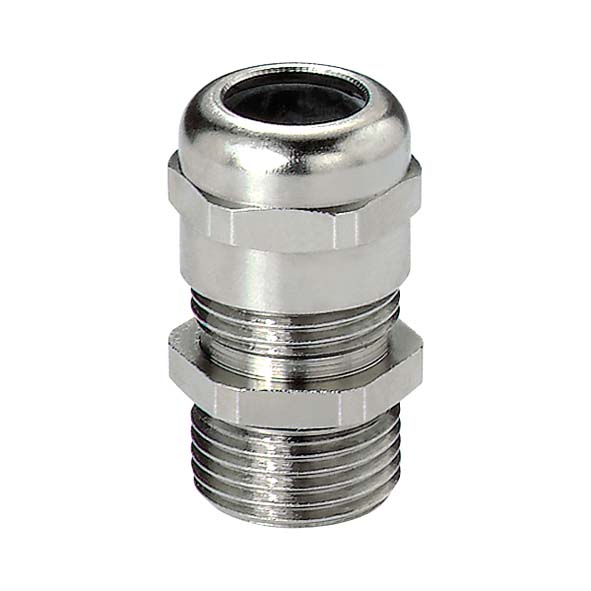

Cable Gland Brass IP68 long thread Metric

Lead-Free
  • Long connection thread
  • Integrated anchorage
  • Protection against twisting
  • Easy-to-install
  • Lead-Free
Create product sheet (PDF)
Questions/Order

* IP69K tested for M12-M25, M50 & M63

Material:
Brass nickel plated (CuZn21Si3P)
Lamellar insert:
Polyamide PA6 V-2
Sealing ring:
Polychloroprene-Nitrile rubber CR/NBR
O-ring:
Nitrile Rubber NBR
Ingress protection:
IP68 - 5 bar, IP69K*
Temperature range:
-20°C....+100°C (dynamisk)
-40°C (static, short term)
Colour:
Brass nickel plated
Test standard:
EN 62444 / UL514B
VDE licence:
40020901
UL / CSA-File:
E140310
Halogen-Free:
Yes
